Features
·

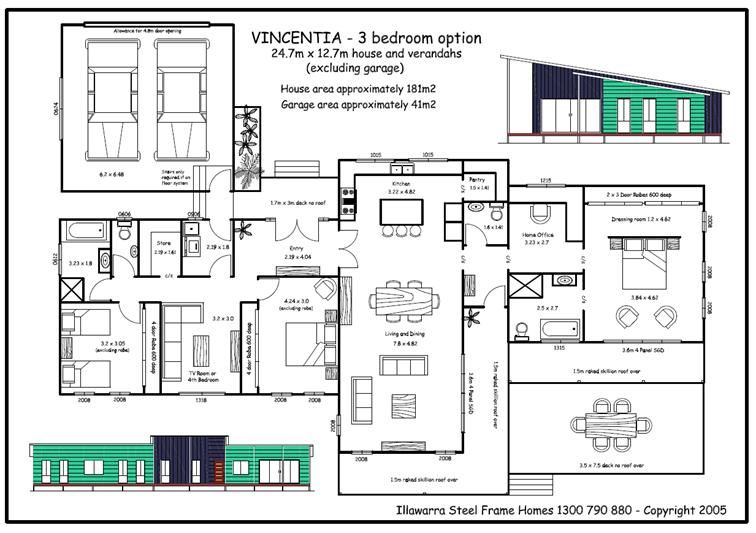

Floor
area approximately 181m2 with optional Double Garage
·
Large
open plan living and separate TV/family room area
·
Spacious
master bedroom with walk-in dressing room and large ensuite
·
Very
large robes to bedrooms, walk-in store room and pantry
This
is the design for those who love to entertain.
Every area of this floor plan is roomy.
The entry is large with double doors and fixed glass panes either side. The master bedroom is very spacious with walk
in dressing room and family sized bathroom including a bath rather than the
usual ensuite size.
This room has double opening slider to open up to the outdoors. The other two bedrooms are large with 4 door
robe units and again another large bathroom and separate toilet. Kitchen, Dining and Lounge all focus around
the outdoor area with the sliding doors opening the indoor to the outdoor. The skillion roof frame continues over the
1.5m deck area.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $ 113,950.00
·
Pre-fabricated
2.4m wall frames and skillion trusses @ 8 – 10 degree roof pitch to house
·
Roof
and ceiling battens and truss bracing
·
Verandah
1.5m wide under roof frame to living and bedroom areas
·
450mm
wide eaves framing and linings to house (no overhang to verandah)
·
Stegbar Aluminium windows and doors with screens and pre
primed reveals as per plan
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies or Colorbond claddings
POA)
·
Feature
doors from Hume Vaucluse range or similar to entry, laundry and back deck
·
Gainsborough
Tri-lock Contemporary Levers to all entry doors
·
All
required fixings for materials supplied, screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi trailer is required)
FULL KIT including all
items above $ 139,950.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
villaboard to wet areas, 90mm cornice, manhole and
all setting materials
·
75mm
pre-primed pine skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity sliders and Smartrobes
with feature design doors
·
Gainsborough
Levers to passage, privacy locks to bathrooms, cavity privacy to ensuite, flushpulls to pantry and
robes
FLOOR SYSTEM including all
decks as drawn $ 40,870.00
90mm PIERS $ 12,940.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and 1m high
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
DOUBLE GARAGE (excluding slab and garage door)
LOCK UP KIT $ 26,490.00
FULL KIT $ 29,390.00
·
2.7m
wall height with 8-10 degree skillion trusses, 450mm eaves
·
Newport
cladding and ametalin wrap, colorbond
roof and blanket, window and external door with lever
·
Lined
with wet area board if full kit option chosen.
(no wall or ceiling batts included in full kit)
Prices
current as at JULY 2023
