Features
·

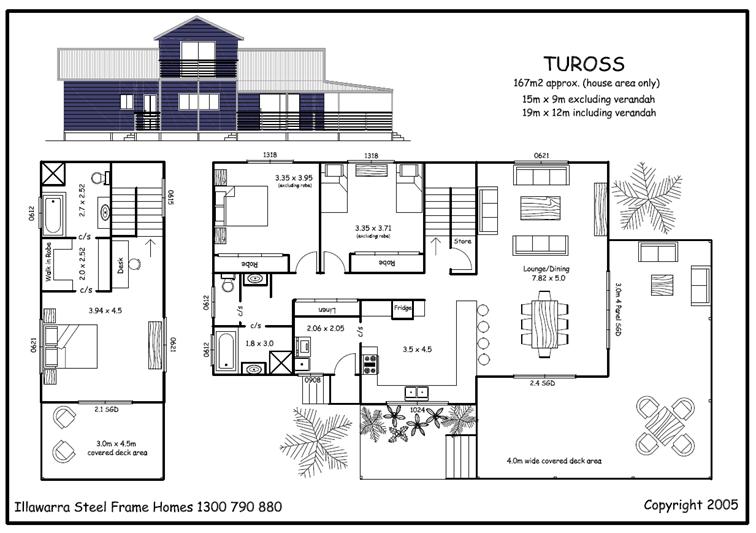

Floor
area approximately 167m2
·
Master
bedroom with walk-in-robe and ensuite and deck area
·
2
large bedrooms with robes
·
Large
outdoor covered deck area
A
three bedroom home designed with a great escape for Mum and Dad. Here the master bedroom is on a different
level to the rest of the house. This is
a large room with study/work area, walk in robe and ensuite,
opening onto private deck. The two
downstairs bedrooms are spacious with good sized robes. Three way bathroom and large linen and store
areas. Big open kitchen with the lounge
and dining opening onto the large covered deck on two sides. Large windows and sliding glass doors allow
you to make the most of any views.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $ 110,800.00
·
Pre-fabricated
2.7m wall frames with gable trusses @ 22 degree roof pitch
·
Roof
and ceiling battens and truss bracing
·
Floor
system to first floor area with 90mm steel posts, bearers and joist with structafloor boards and hardwood decking
·
4.0m
wide flat verandah to two sides as per plan and 4.5m x 3.0m wide verandah roof to
first floor deck, both lined with FC sheetings and
PVC joiners
·
Aluminium
sliding windows and doors with screens as per plan
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
450mm
eave framing and linings (no overhang over verandah)
·
50mm
Anticon blanket to roof and verandahs.
Ametalin thermal break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies or Colorbond claddings
POA)
·
Hume
entry door from Vaucluse range or similar with Gainsborough Bela
lever to laundry
·
All
required fixings for materials supplied, screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi-trailer is required)
FULL KIT including all
items above $ 132,160.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
villaboard to wet areas, 90mm cornice, manhole and
all setting materials
·
75mm
pre-primed skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity sliders and Smartrobes
with feature design doors
·
Gainsborough
Levers to passage doors, cavity locks with privacy to bathrooms, flushpulls to robes
FLOOR SYSTEM (ground floor
including verandah) $ 35,580.00
90mm PIERS $ 11,110.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
Prices
current as at JULY 2023
