Features
·

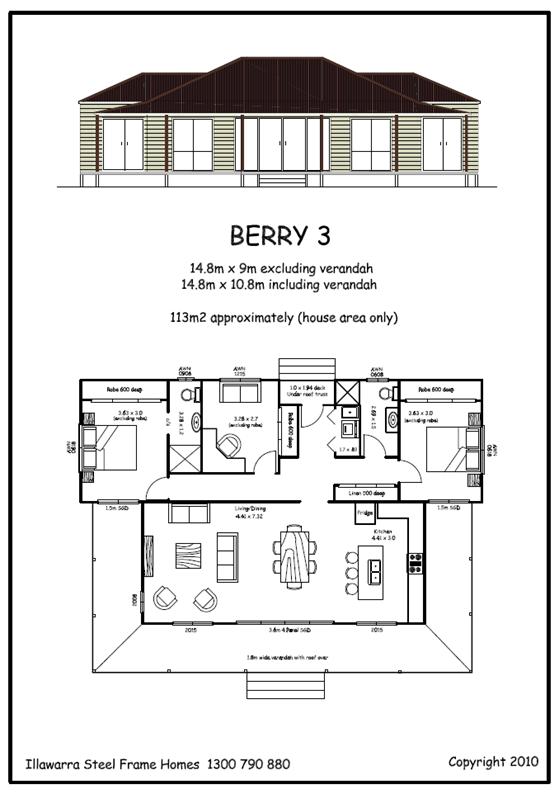

Floor
area approximately 113m2
·
1.8m
wide verandah roof to front and sides. Covered landing to back
·
2.7m
walls and hipped trusses at 25 degree pitch
Here
we have same Country look as the Berry 2 but a 3 bedroom version with a
different layout. Alternatively, this
design would also work well with a skillion roof option. The Master bedroom has
an ensuite. The other 2 rooms are still a good
size. All with built ins. Again large open plan lounge, kitchen and
dining areas. Windows positioned to take in the view. Sliding door to the deck. Back entry with
laundry behind cupboard doors rather than a separate room. The landing at this entry is under cover of
the house roof. The two larger bedrooms
have access to verandah via sliding glass doors.
KIT TO LOCK UP STAGE $ 73,810.00
·
Pre-fabricated
2.7m frames and hipped trusses @ 25 degree pitch
·
Roof
and ceiling battens and truss bracing
·
1.8m
wide lined verandah to front, sides and back.
Split roof line with separate fascia and gutters
·
Aluminium
sliding windows and doors with screens as per plan except for where there is no
verandah roof and here we have awning windows because of no eave overhangs
·
Colorbond
roof, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandah. Ametalin thermal break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies claddings or Colorbond
POA)
·
Entry
door from Hume Vaucluse range with Gainsborough Bela
Lever door furniture
·
All
required fixings for materials supplied, screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi-trailer is required)
FULL KIT including all
items above $ 91,080.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board, 90mm cornice, manhole and all setting materials
·
75mm
pre-primed pine skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity slider and Smartrobes
with feature panel doors
·
Gainsborough
Levers to passage doors with privacy/cavity locks to bathrooms and flushpulls to robes
FLOOR SYSTEM including verandahs $ 27,390.00
90mm PIERS $ 9,430.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandas
·
Under
floor insulation R2.2 (foilboard) to house area
Prices
current as at JULY 2023
