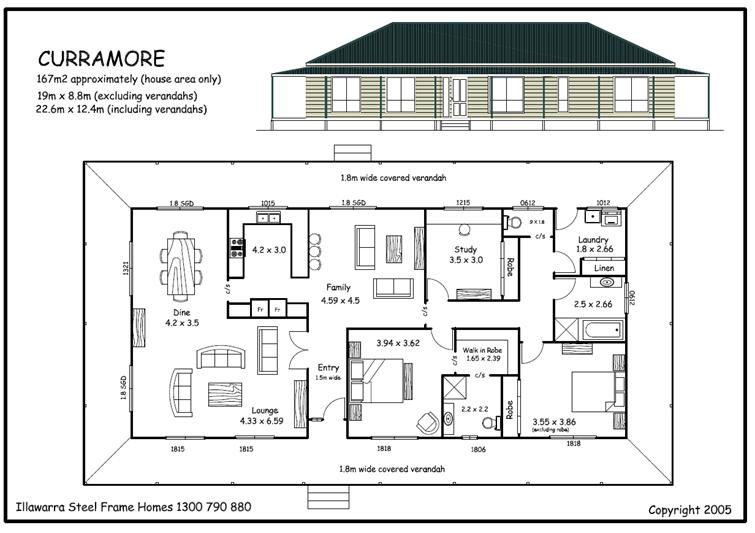

Curramore


                 CURRAMORE


Features * Floor area (house only) approximately 167m2

* 1.8m wide verandah roof to all sides

* Separate entry, formal lounge/dining and family

* Master bedroom with Walk in robe and Ensuite



The Curramore is our Australian style three bed with family room.

This is the perfect design for those who now have the house to themselves. All rooms are spacious. Separate formal lounge and dine.

It has a large Master bedroom with walk in robe and ensuite. There is a second large bedroom to cater for any overnight visitors.

The study is smaller but also works as a third bedroom and still has a good sized robe/storage cupboard.



KIT TO LOCK UP STAGE 2.4m No split roof line to Verandah $ 77,123.00

(MATERIAL SUPPLY ONLY) 2.7m With split roof line to Verandah $ 80,931.00



* Pre-fabricated 2.4m or 2.7m wall frames and trusses @ 25 degree roof pitch

(no eave overhangs) with roof and ceiling battens and truss bracing

* 1.8m wide verandah to all four sides. 2.4m wall height has verandah roof fitting directly

under the house roof with fascia and gutter to verandah only. 2.7m wall height has a

split between the house and verandah roof with fascia and gutter to both the house and

the verandah. Lined with FC sheeting and PVC joiners, with beams, posts and post bases

* Aluminium sliding windows and doors with screens as per plan

* Colorbond roof sheeting, capping, flashings, fascia, gutters and downpipes

* 50mm Anticon roof blanket to house and verandah. Sisalation foil to external walls

* Hardies Newport cladding with accessories (from floor level only)

* Feature design Entrance door and glass sidelite to entry . Plain door to Laundry

* Gainsborough Governor Door Furniture to Entrance and Laundry

* All required fixings, Screw gun and drill bits, and Construction Manual

* Plans for submission to Council including Basix

* Transport to site to be priced as an extra



FULL KIT (including all items above) 2.4m No split roof to verandah $ 92,073.00

(MATERIAL SUPPLY ONLY) 2.7m With split roof to verandah $ 96,531.00



* R1.5 batts to external walls and R3.3 batts to ceilings

* Plasterboard, villaboard to wet areas, 90mm cornice and all setting materials

* 75mm pre-primed skirting and architrave

* Pre-hung door jamb units with feature design redicote doors

* Gainsborough Lever door furniture to all internal doors

* All robes, store or linen that show sliders are Hume Smartrobe units



FLOOR SYSTEM (house only) (MATERIAL SUPPLY ONLY) $ 16,240.00

90mm PIERS (house only) $ 5,930.00

FLOOR SYSTEM FOR VERANDAH 4 SIDES INCLUDING PIERS $ 21,451.00



* Steel bearers and joist with adjustable piers @ 2.5m centers, maximum height of 1m

* Structafloor to house area and mixed hardwood decking to verandahs

* Under floor insulation R2.2 (foilboard) under house area
