Features
·
Floor
area approximately 136m2
·
1.8m
wide verandah roof to front and side
·
2.7m
ceiling height and 25 degree roof pitch
·
Optional
Carport with skillion roof (priced separately below)
·
Master
bedroom with walk-in-robe and ensuite

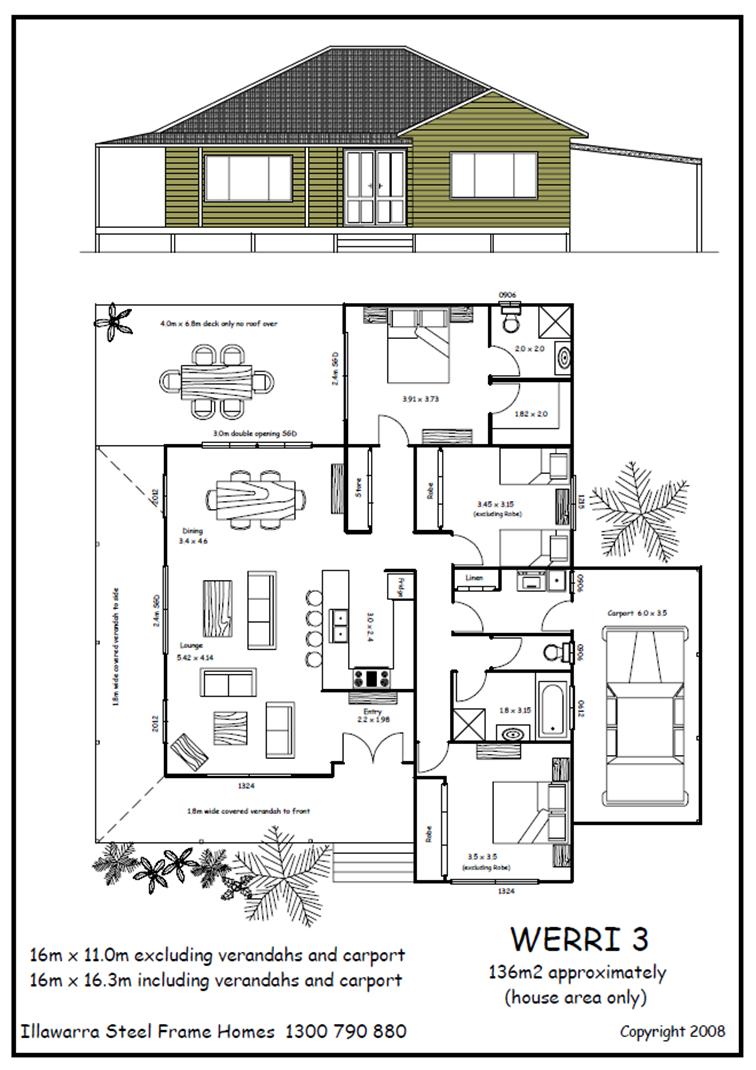

A
three bedroom variation of the WERRI 2. Here we have added a large master
bedroom with robe and ensuite and access to large
deck area. The two other bedrooms are
generous. The lounge, kitchen and dining
areas remain the same but now with access to a larger uncovered back deck area.
Plenty of Storage. Large windows and
doors to the front, side and back allow you to make the most of any views.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $ 85,020.00
·
Pre-fabricated
2.7m wall frames with hipped and gabled trusses @ 25 degree roof pitch
·
Roof
and ceiling battens and truss bracing
·
Lined
flat verandah 1.8m wide to front and side.
Fits under roof sheet not separate (split roof line)
·
Aluminium
sliding windows and doors with screens as per plan
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandah. Ametalin Thermal
Break wrap to external walls
·
Hardies
·
Double
entrance doors from Hume Vaucluse range or similar. Standard solid core to Laundry
·
Gainsborough
Tri-lock Contemporary Lever to Entry (1 only) and Bela
lever to Laundry
·
All
required screws and fixings for material supplied. Screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi-trailer is required)
FULL KIT including all
items above $ 103,830.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
villaboard to wet areas, 90mm cornice, manhole and
all setting materials
·
75mm
pre-primed pine skirting and architrave
·
Hume
Pre-hung door and jamb units and Smartrobes with
feature design doors
·
Gainsborough
Levers to passage doors with privacy locks to bathrooms and flushpulls
to robes
FLOOR SYSTEM including
verandah $ 34,260.00
90MM PIERS $ 10,530.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
CARPORT $ 6,640.00
·
Skillion
roof beams, posts, colorbond roof sheets (no roof
blanket), fascia, gutter and downpipes, lined with 4.5mm FC sheeting and PVC
joiners
Prices
current as at JULY 2023
