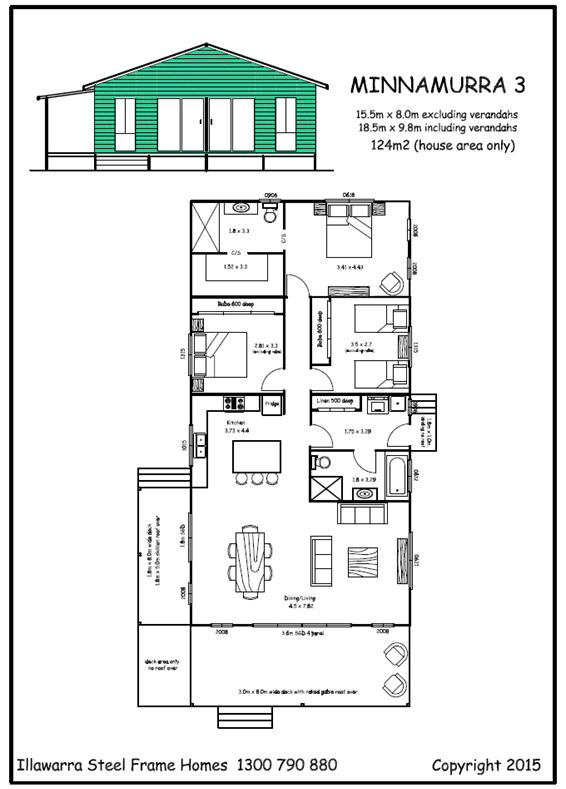

MINNAMURRA 3
Features
·
Floor area approximately 124m2
·
1.8m wide skillion roof to side
entry and 3.0m wide raked gable roof to front
·
2.4m ceiling height and 22 degree gabled
roof trusses
The Minnamurra 3 is an extension of our Minnamurra 2 design
adding a large master bedroom with walk in robe and ensuite.
Another 2 good sized bedrooms with built in robes. Open plan kitchen, lounge and dining with
access to large covered deck through double sliding doors as though a
continuation of the living areas. These
doors are complimented either side with full length windows to provide
excellent views and a feeling of open space.
PRICES
BELOW ARE SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP
STAGE $ 76,530.00
·
Pre-fabricated 2.4m wall frames and
22 degree pitch gabled trusses (hipped or skillion trusses POA)
·
Roof and ceiling battens and truss
bracing
·
1.8m wide lined skillion verandah
roof to side entry and 3.0m wide raked roof frame to front. Verandah, lined with steel posts, beams and
post bases
·
Aluminium sliding windows and doors
with screens as per plan
·
Colorbond roof sheeting, flashings,
fascia, gutters and downpipes
·
50mm Anticon
blanket to house roof and verandahs. Ametalin Thermal
Break Wrap to external walls
·
Hardies Newport cladding with
accessories (alternative Hardies claddings or Colorbond POA)
·
1 plain (no pattern) solid core door
to Laundry with Gainsborough Bela Lever door handle
·
All required screws and fixings for materials supplied,
screw gun and construction manual
·
Plans for submission to Council
·
Transport to site to be priced as an
extra (access for semi-trailer is required)
FULL KIT including
all items above $ 92,880.00
·
R2.0 batts to external walls and
R3.5 batts to ceilings
·
Plasterboard, wet area board or villaboard to bathrooms, 90mm cornice, manhole and all
setting materials
·
75mm pre primed pine skirting and
architrave
·
Hume Pre-hung door and jamb units,
cavity sliders and Smartrobes with feature design
doors
·
Gainsborough Levers to passage doors
with privacy/cavity locks to bathrooms and flushpulls
to robes
FLOOR SYSTEM
including verandah areas $ 27,100.00
90MM PIERS $ 9,870.00
·
Steel bearers and joist with
adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and merbau
hardwood decking to verandahs
·
Under floor insulation R2.2 (foilboard) under house area
Price current as at JULY
2023
