                        4 Bedroom        BACK TO 5 BEDROOM KIT HOMES         Next

                             Scroll down or click here to see PRICING and INCLUSIONS

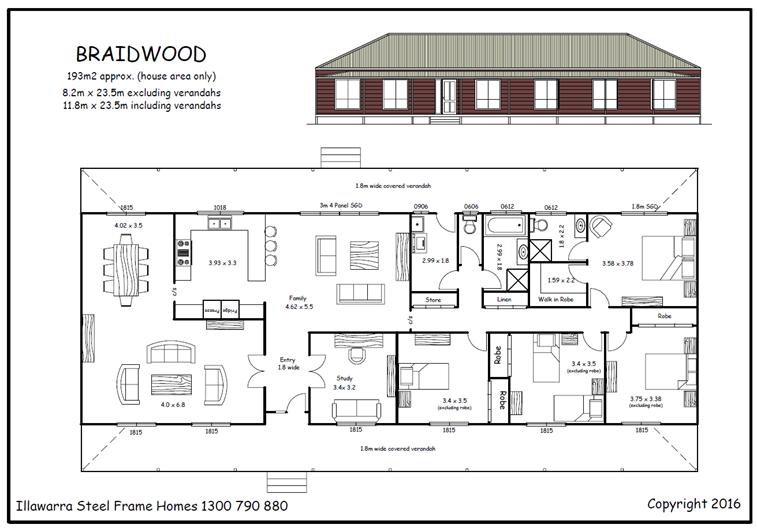

Braidwood


                    BRAIDWOOD



Features     *          Floor area (house and garage) approximately 193m2

                        *          1.8m wide verandah roof to front and back

                        *          Separate entry, formal lounge/dining and family

                        *          Built in robes with quick slide units to bedrooms

                        *          Master bedroom with Walk in robe and Ensuite



The Braidwood is our basic five bedroom country style home.  Verandahs to front and back are included in the kit price.  Three good sized bedrooms have built in robes while master bedroom has walk in robe and ensuite.  Separate study or guest room.  Large kitchen and family room with access to back verandah through double sliding glass doors.  Separate formal lounge and dine.   Large laundry and toilet with access from outside.  No shortage of storage in this home.





KIT TO LOCK UP STAGE (MATERIAL SUPPLY ONLY)                   $  80,820.00



*          Pre-fabricated 2.7m wall frames and trusses @ 25 degree roof pitch

*          Roof and ceiling battens and truss bracing

*          1.8m wide verandah to front and back.  Split roof line with separate fascia and gutter

            Flat and lined with FC sheeting and PVC joiners

*          Aluminium sliding windows and doors with screens as per plan

*          Colorbond roof sheeting, capping, flashings, fascia, gutters and downpipes

*          50mm Anticon blanket to roof and verandahs.  Sisalation foil to external walls

*          Hardies Newport or summit cladding with accessories from floor level

*          Feature design door and sidelite to Entry and plain standard solid core door to laundry

*          Gainsborough Tri-Lock Door Furniture to Entrance and Gainsborough Governor to laundry

*          All required screws, fixings, screw gun, drill bits, and construction manual

*          Plans for submission to Council including Basix

*          Transport to site to be priced as an extra (access for semi-trailer is required)



FULL KIT INCLUDING ALL ITEMS ABOVE   (MATERIAL SUPPLY ONLY)     $   99,530.00



*          R1.5 batts to external walls and R3.3 batts to ceilings

*          Plasterboard, villaboard to wet areas, 90mm cornice and all setting materials

*          75mm pre-primed skirting and architrave

*          Hume Pre-hung door jamb units with feature design redicote doors

*          Gainsborough Lever door furniture to all internal doors

*          All robes, store or linen that show sliders are smartrobe units



FLOOR SYSTEM (includes verandah areas)                               $   31,610.00

90mm PIERS  (MATERIAL SUPPLY ONLY)                               $     8,440.00



*          Steel bearers and joist with adjustable piers @ max. 2.5m centres/average height of 1m

*          Structafloor to house area and mixed hardwood decking to verandahs

*          Under floor insulation R2.2 (foilboard) to house area
