Features
·
Floor
area approximately 83m2
·

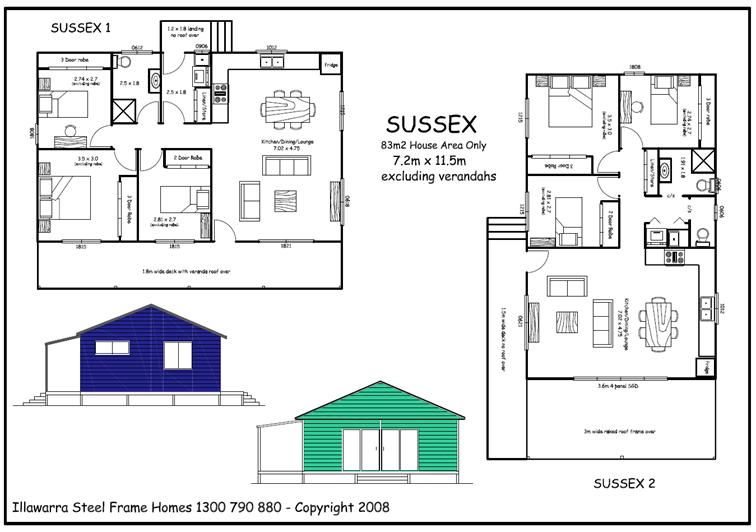

Two
floor plans and two verandah options that show how easy it is to change things
around to suit your needs
This
is the smallest of our three bedroom range.
Ideal holiday home or for the retiree.
Room sizes are not as generous as our other styles but certainly not too
small either. The Sussex 1 is the basic
version with verandah roof across the front and landing to the back is a
typical Australian style look. The Sussex
2 offers a second, separate toilet and laundry cupboard instead of
dedicated room. It's open plan kitchen,
lounge and dine is designed with emphasis on the outdoor living area with large
deck accessed by sliding glass doors.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE
SUSSEX 1 $ 53,270.00
SUSSEX 2 $ 59,700.00
·
Pre-fabricated
2.4m wall frames gable roof design
·
(2.7m
wall height, hipped, dutch gable or skillion roof trusses
all optional extras)
·
Roof
and ceiling battens and truss bracing
·
1.8m
wide lined, flat separate verandah roof to front of Sussex 1 and 3.0m raked
gable roof frame to front with a small skillion roof over the entry door to
Sussex 2
·
Aluminium
sliding windows and doors with screens as per plan
·
Colorbond
roof sheeting, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs
and Ametalin thermal break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies claddings or Colorbond
POA)
·
Entry
door from Hume Vaucluse range to Sussex 1 and 2. Plain solid core door to laundry in Sussex 1
·
Gainsborough
Bela Lever door furniture to entry and laundry doors
·
All
required fixings for materials supplied, screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi-trailer is required)
FULL KIT including all
items above
SUSSEX 1 $ 66,000.00
SUSSEX 2 $ 73,860.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board, 90mm cornice, manhole and all setting materials
·
75mm
pre-primed pine skirting and architrave
·
Hume
pre-hung door and jamb units, cavity slider and Smartrobes
with feature panel doors
·
* Gainsborough Levers to passage doors with
privacy or cavity locks to bathroom and flushpulls to robes
FLOOR SYSTEM including
piers and verandah
SUSSEX 1 $ 24,010.00
SUSSEX 2 $ 26,760.00
·
Steel
bearers and joist with 90mm adjustable piers @ approx. 2.3m centres and height
of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
Prices
current as at JULY 2023
