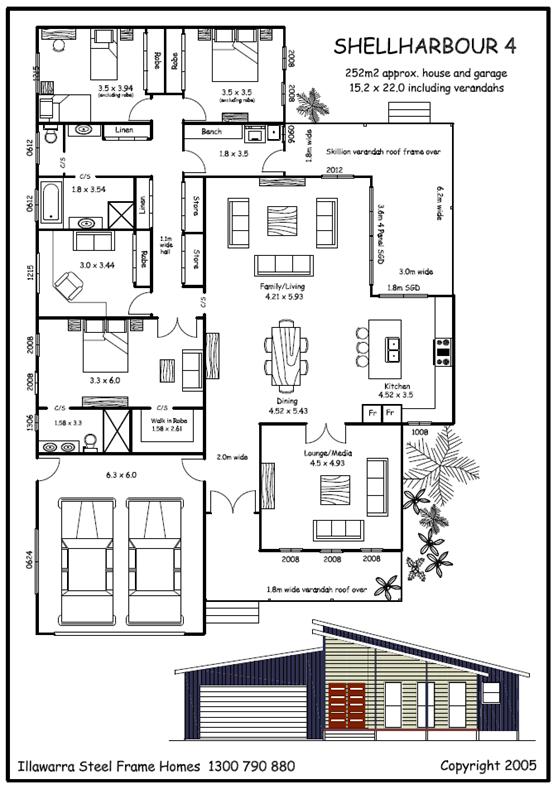

Shellharbour 4


                SHELLHARBOUR  4



Features * Floor area approximately 252m2

* 1.8m wide verandah roof to front and 6.2m x 3m to the back

* Double Garage with internal access

* Separate lounge/media room. Large Kitchen, Family and Dine

* Master bedroom with walk-in-robe and ensuite

* Large robes and linen with quick slide units



The Shellharbour 4 offers a mix of the Shellharbour 3 and 5 aspects but with a skillion roof design. The skillion roof frame offers 1.8m wide verandah to front and larger covered deck areas to the back access by 2 large sliding door units. The wide formal entry leads to a large open plan kitchen, dining, living area with a separate lounge/media room. 3 good sized bedrooms with robe and a master bedroom with ensuite and walk in robe. Large laundry and bathroom with separate toilet. Lots of storage.



KIT TO LOCK UP STAGE (MATERIAL SUPPLY ONLY) $ 95,510.00



* Pre-fabricated 2.4m wall frames and trusses @ 10 12 degree roof pitch

* Roof and ceiling battens and truss bracing

* Lined raked verandahs to front and back as drawn under the skillion roof frame

* 450mm wide eaves framing and linings (no overhang to verandah)

* Aluminium sliding windows and doors with screens as per plan

* Colorbond roof sheeting, capping, flashings, fascia, gutters and downpipes

* 50mm Anticon blanket to roof and verandah. Sisalation foil to external walls

* Hardies Primeline Newport Cladding with accessories from floor level

* 2 solid core feature entrance doors and 2 other plain solid core to Laundry and garage

* Gainsborough Tri-lock to 1 Entrance and Gainsborough Governor to Laundry and garage

* All required screws, fixings, screw gun and construction manual

* Plans for submission to Council including Basix

* Transport to site to be priced as an extra (access for semi trailer is required)



FULL KIT INCLUDING ALL ITEMS ABOVE (MATERIAL SUPPLY ONLY) $ 118,480.00



* R1.5 batts to external walls and R3.3 batts to ceilings

* Plasterboard, villaboard to wet areas, 90mm cornice and all setting materials

* 75mm pre-primed skirting and architrave

* Pre-hung door jamb units with feature design redicote doors

* Gainsborough Lever door furniture to all internal doors

* All robes, store or linen that show sliders are Hume Smartrobe units



FLOOR SYSTEM (includes verandah areas but excludes garage slab) $ 26,940.00

90mm PIERS (MATERIAL SUPPLY ONLY) $ 7,780.00



* Steel bearers and joist with adjustable piers @ maximum 2.5m centres and height of 1m

* Structafloor to house area and mixed hardwood decking to verandahs

* Under floor insulation R2.2 (foilboard) to house area
